EZTEX Warp Knotting Machine

PHOTOS
VIDEOS

Description

Model EZTex automatic warp knotting machine is the best warp knotting solution for label weaving looms, mainly for polyester or silk, it is an ideal solution for workshops with narrow space such as shuttle looms, water jet looms and rapier looms.

EZTex has 2 types, one is cutter type for fine yarns (<150D), another is tube type for coarse yarns >(150D).

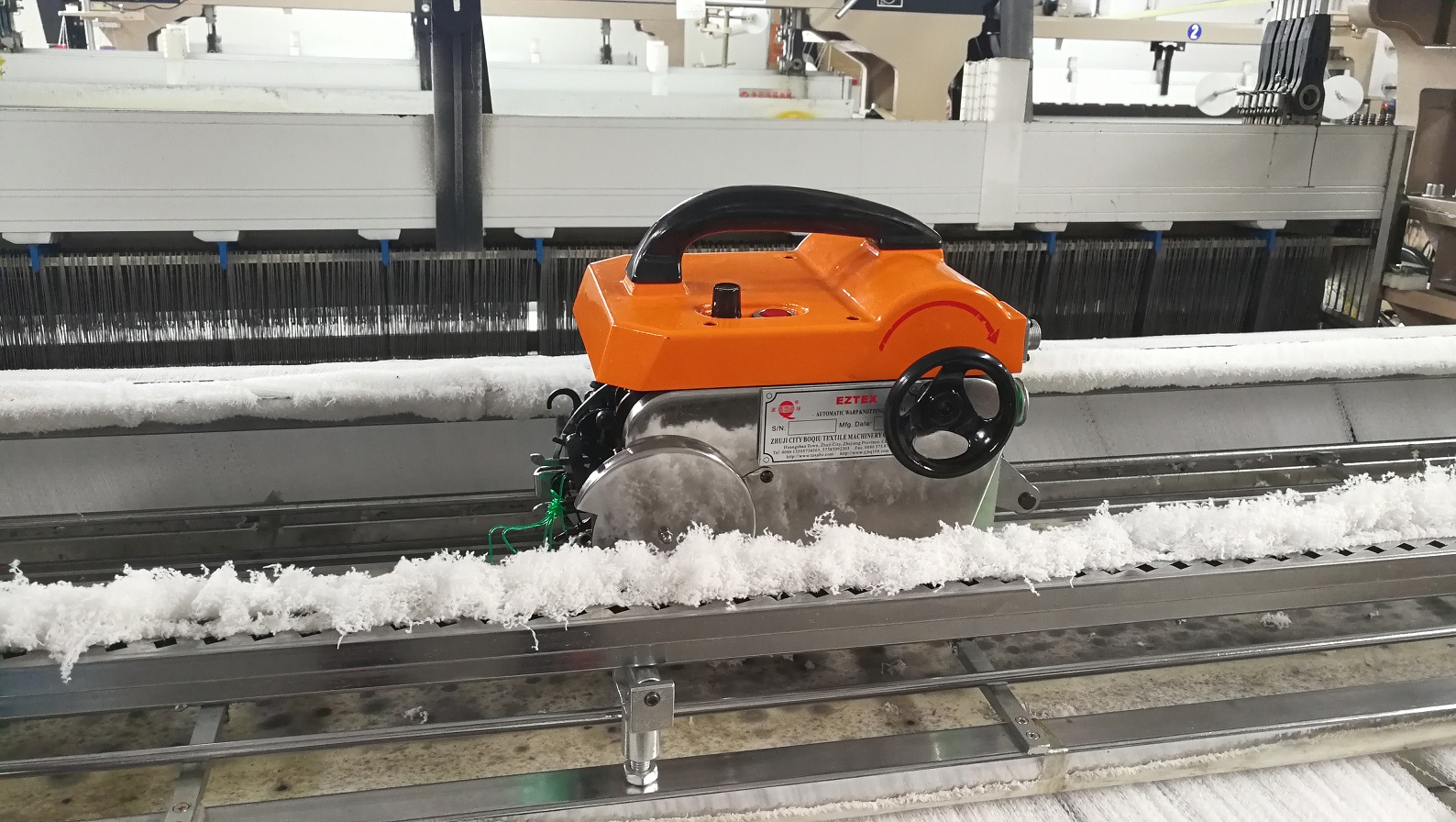

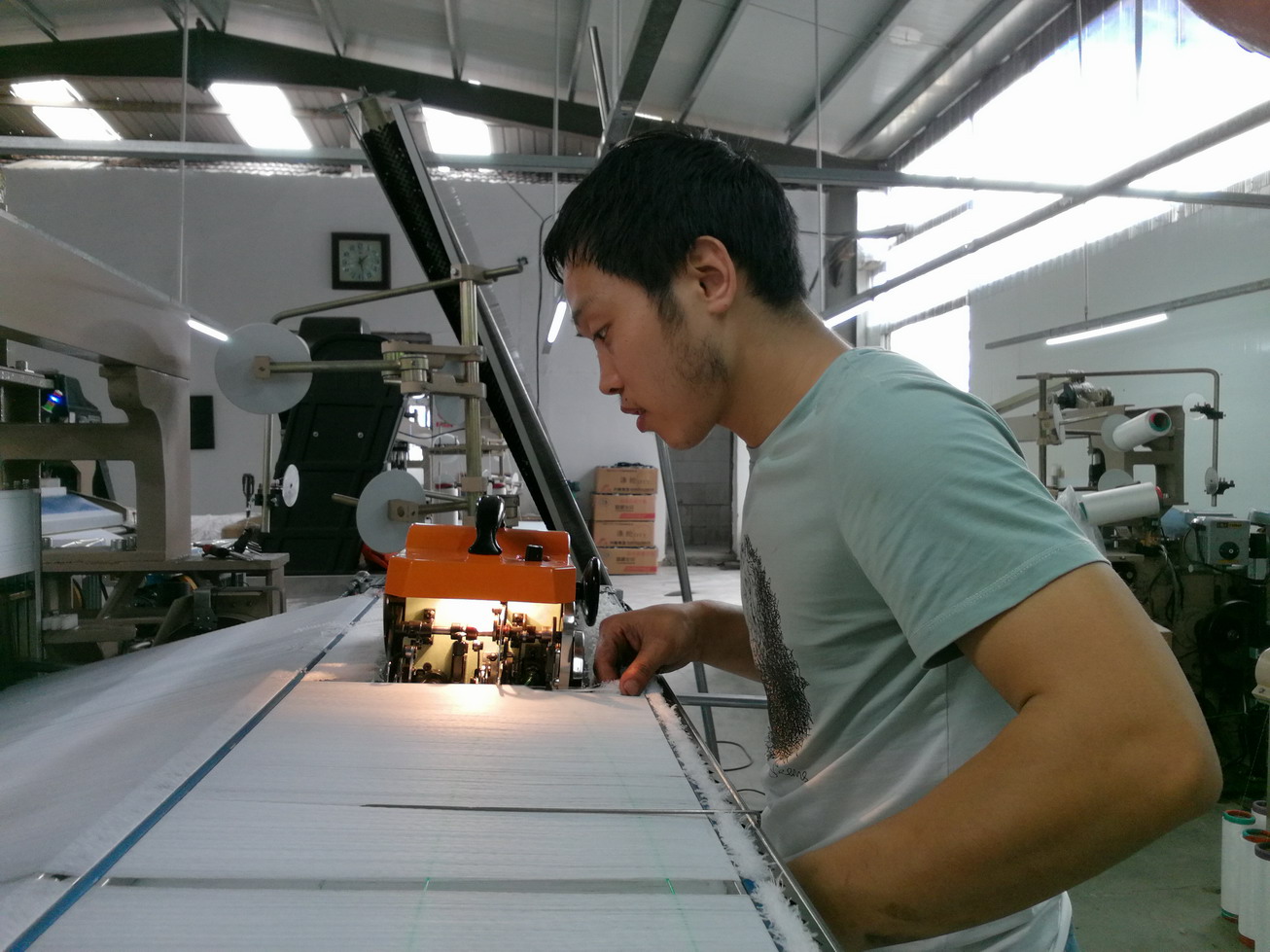

The machine is equipped with a specially designed on-loom knotting frame which can work with narrow space workshops where looms are very closely arranged and trolley type knotting frames are not possible to enter. It is now the most economic knotting solution and also the best seller for the weaving industry.

Specification

MODEL	EZTEX cutter type	EZTEX tube type	EZTEX tube type double knot
Max working Speed	400rpm
Working Width	50mm-2500mm
Working Speed	400 knots per minute maximum, stepless speed adjustment
Yarn range	warp yarns of natural fiber, synthetic fiber, chemical fiber
Yarn count range	15D-150d or equivalent	100d-2000D or equivalent	100d-2000D or equivalent
Lease condition	warp yarn with lease only
Knot Type	Single Knot	Single Knot	double knot
Power Supply	AC 220V 50HZ

Catalogue

download

Inquiry

Name

Company

Address

City

Province/State

Country

Tel

Fax

Mobile

Subject

Message

EZTEX Warp Knotting Machine

Waste no more time

Client first, quality first!

Best supplier of textile machines.

Address

Map

JINGONG INDUSTRIAL CO., LTD. a professional supplier of textile machines.

ITMA ASIA + CITME (Nov. 19-23, 2023) Welcome to visit us at Stand No. H3B02A in Hall 3

NATIONAL EXHIBITION AND CONVENTION CENTER (NECC SHANGHAI)

Address:NO. 168 EAST YINGGANG ROAD, SHANGHAI, CHINA

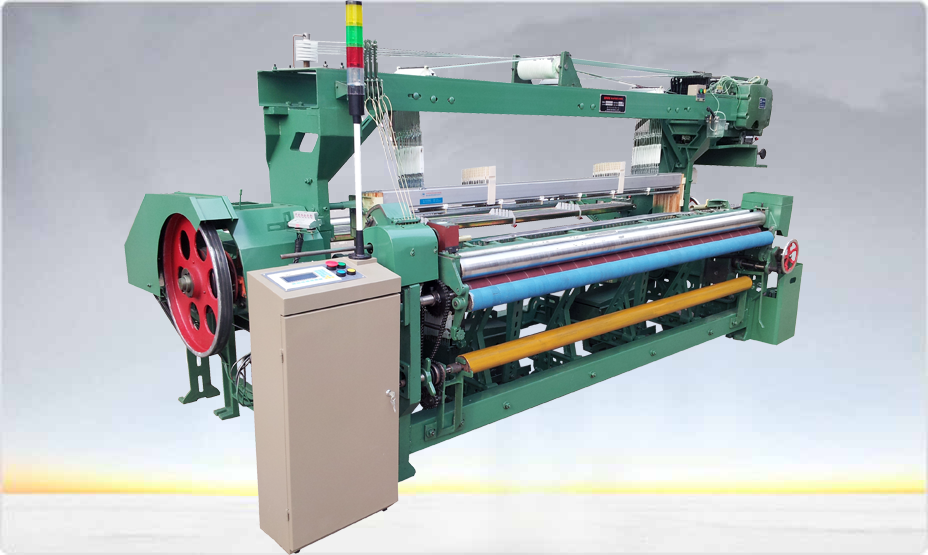

Chinese Rapier looms, Chinese Airjet looms

Warp Knotting/Leasing Machines For Weaving

Warp Knotting Machines For Narrow Weaving

Warp Knotting Machines For Warp Knitting

Yarn Processing Machines

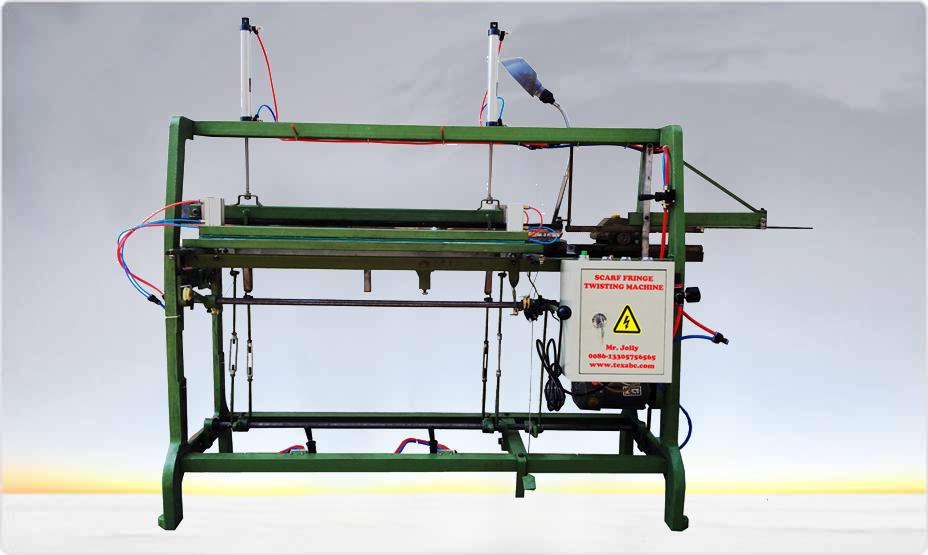

Fringe Twisting Machine
